HANDLEBARS/HANDGUARDS…

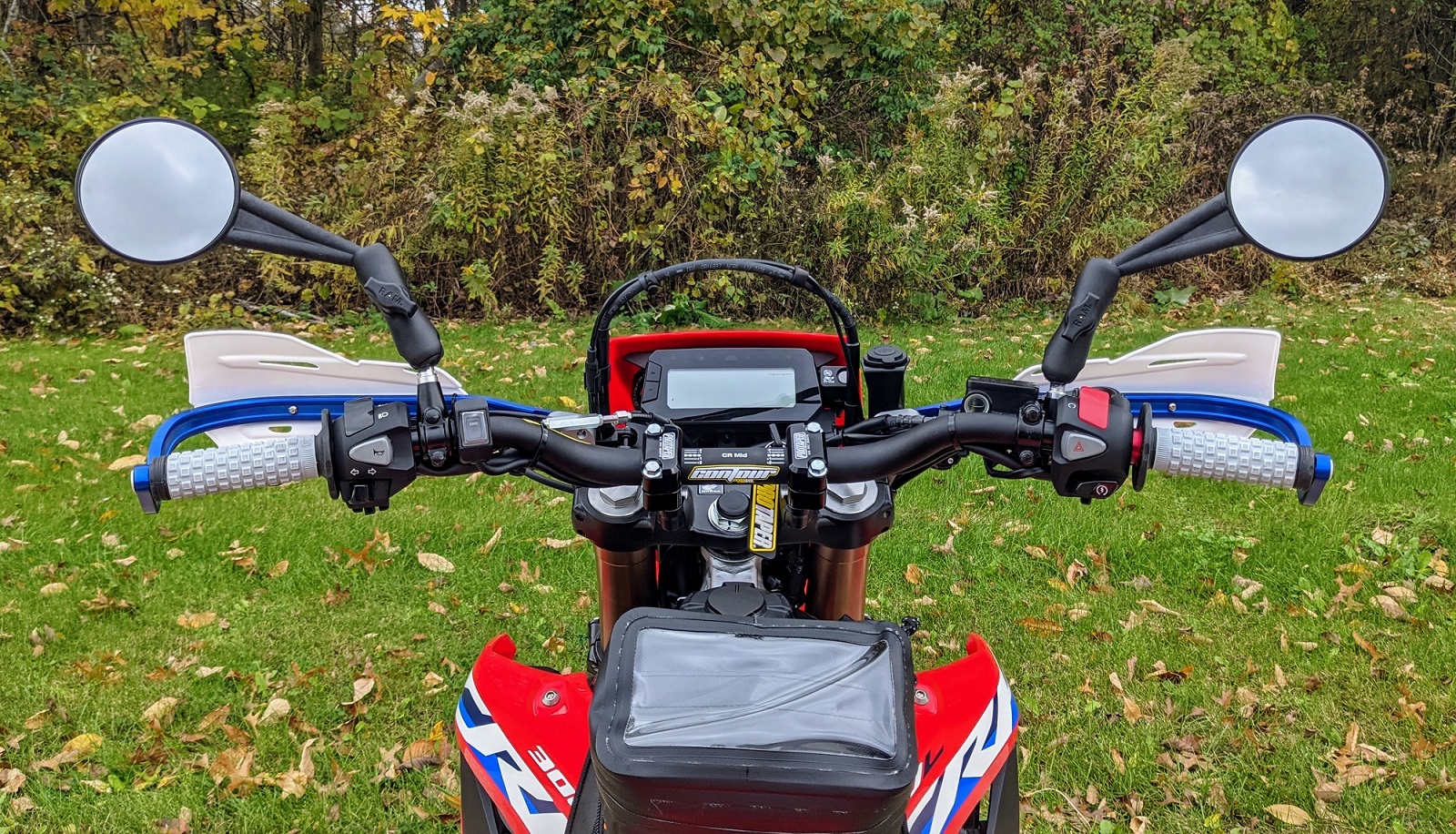

The stock handlebars on the bike are very low in profile/height, they’re made out of steel, and have threaded inserts in the ends, which makes installing handguards a challenge. We decided to replace ours with aftermarket aluminum bars, and went with oversize 1 1/8″ Pro Taper Contours in the CRF Mid bend. To install the oversize handlebars, we used Pro Taper’s Universal Solid Mounts, which sit down in the stock 7/8″ handlebar mounts and allow you to mount the 1 1/8″ bars. Your stock controls, grips, etc will fit right back on the oversize bars just fine, since the handlebars taper back down to 7/8″ on the ends. We decided to replace our stock grips and throttle tube with aftermarket bits from Pro Taper and G2. The new Pro Taper handlebars will be much more durable, and they ended up being a little over 1″ higher than the stock bars, so this will be much comfortable, especially when standing. We re-used the Zeta Armor handguards we had installed on the stock handlebars, but instead of using their standard handlebar clamps, we used Zeta’s hand guard mounts that attach to the top triple clamp.
• Pro Taper Contour Handlebars (CR Mid Bend) from SRmoto
• Pro Taper Universal Solid Mounts from SRmoto
• Zeta Armor Handguards (blue aluminum/white XC Protectors w/LED’s) from SRmoto
• Zeta Hand Guard Mount for Triple Clamps (Front Style) from SRmoto
• G2 Tamer Throttle Tube from SRmoto
• Pro Taper Pillow Top Grips from SRmoto
• Barkbusters Bar End Weights

COCKPIT…
The stock mirrors were one of the first things we replaced… they provide descent visibility, but they can do damage if you drop the bike and one of them breaks off, especially on the front brake reservoir side. We went with the much more durable DoubleTake Enduro Mirrors. The stock footpegs are very narrow and prone to bending if you drop the bike. We replaced ours with lightweight Zeta Aluminum footpegs, which are larger/wider than the stock pegs, and will make them much more comfortable when standing up on the bike. They also have have more teeth for added grip. The stock clutch/brake levers are super long and non-adjustable. We replaced ours with the shorter 3-finger Zeta Pivot Levers, which are much more durable AND they are adjustable for reach.
• DoubleTake Enduro Mirror Package from SRmoto
• Zeta Aluminum Footpegs (Red) from SRmoto
• Zeta Revolver Folding Shift Lever from SRmoto
• Zeta Pivot Lever Set (Black) from SRmoto
• Seat Concepts Comfort Seat from Seat Concepts

TAIL LIGHT, TURN SIGNALS AND HEADLIGHT…
The stock halogen headlight bulb is not very bright, and it’s yellowish in color. We replaced ours with a much brighter Cyclops LED bulb, that is white in color. Out back, we replaced the stock tail light and turn signals with a very trick 12oClockLabs Integrated Tail Light kit, which really cleans up the back of the bike. Up front, we removed the stock turn signals, and went with Zeta’s integrated LED turn signals in the handguards. 12oClockLabs running light adapter keep those front LED’s on as running lights, and their fixed rate flasher will prevent the new LED’s from hyper flashing.
• 12oClockLabs Integrated Tail Light Kit from SRmoto
• LED front turn signals integrated into Zeta Armor Handguards from SRmoto
• 12oClockLabs Front Running Light Adapters from SRmoto
• 12oClockLabs Fixed Rate Turn Signal Flasher from SRmoto
• Cyclops LED Headlight Bulb from SRmoto

AUXILIARY LED LIGHTING …
Small and narrow dual sports like the CRF300L are probably one of the hardest bikes for drivers to see on the road. We wanted front auxiliary LED lighting so our bike stands out more in traffic, and also to provide better lighting if we ever get caught out on the road/trail after dark. We’ve used Denali lighting on our Tenere 700 project bike, and it is super high quality stuff. We went with their small DM line of LED lights, and mounted them to the stock front turn signal mounting location. Now we’re much more visible on the road, and the super bright LED’s will also work great after dark. I definitely recommend getting the Denali Dual-Intensity Controller, which allows you to use your bike’s high/low beam switch to change the DM’s from half bright to full bright . If you don’t get that controller, then you control the lights from the on/off handlebar switch, so they are either off or full bright, and when they are full bright I think it’s a bit too much for on-coming traffic.

• Denali DM TriOptic LED Light Kit from Denali
• Denali DataDim Dual-Intensity Controller from Denali
• 12oClockLabs Turn Signal Mount Plates from SRmoto **
** NOTE: We used the turn signal mount plates to mount the Denali’s to the stock front turn signal location

PROTECTION…
Moose Racing is importing the high quality AXP skid plates and cargo racks, so we chose their plastic skid plate for our project bike. It is very simple to install and does a great job of protecting the engine and frame. To protect that very vulnerable radiator, we went with Flatland Racing’s radiator guard…
• Moose / AXP Plastic Skid Plate from SRmoto
• Flatland Racing Radiator Guard

ENGINE & PERFORMANCE…

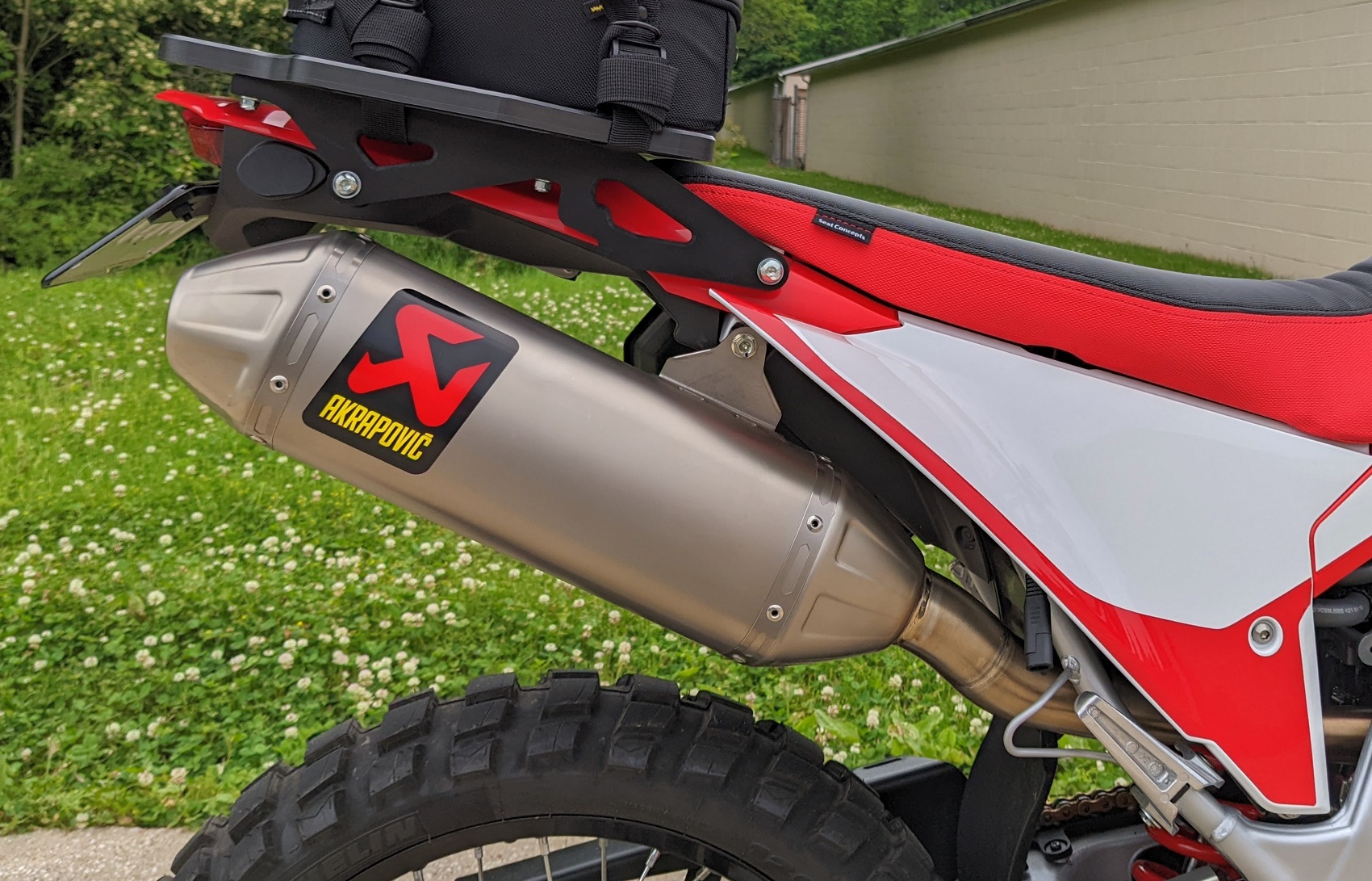

Initially we planned to install a Yoshimura RS-4 Full Exhaust System on our bike, but they were out of stock at the time. I managed to get ahold of an Akrapovic Slip-On Muffler though, so we installed it along with a JD Jetting EFI Controller. So far I’m real pleased with this setup. The Akra slip-on is made out of titanium, so it’s nearly 5 lbs lighter than the stock muffler. It also has a nice deep sound to it…. not quite as loud as the full Yoshi setup, but definitely louder than stock. Performance is also improved and the bike feels better from the butt-dyno perspective, and doesn’t seem to feel as corked up as it did with the stock exhaust. We also recently added the Akrapovic header pipe, so we now have a full Akrapovic system.
• Akrapovic Slip-On Muffler from SRmoto
• Akrapovic header pipe from SRmoto
• JD Jetting EFI Controller from SRmoto

LUGGAGE AND RACKS…
• Giant Loop Buckin Roll Tank Bag from SRmoto
• Moose / AXP Rear Cargo Rack from SRmoto
• Nelson Rigg Trails End Dual Sport Tail Bag from SRmoto
• Nelson Rigg Trails End Trails End Fuel Bottle Holder from SRmoto
• Primus Fuel Bottle from Revzilla
• RotopaX 1 Gallon Fuel Pack from Revzilla

SUSPENSION…

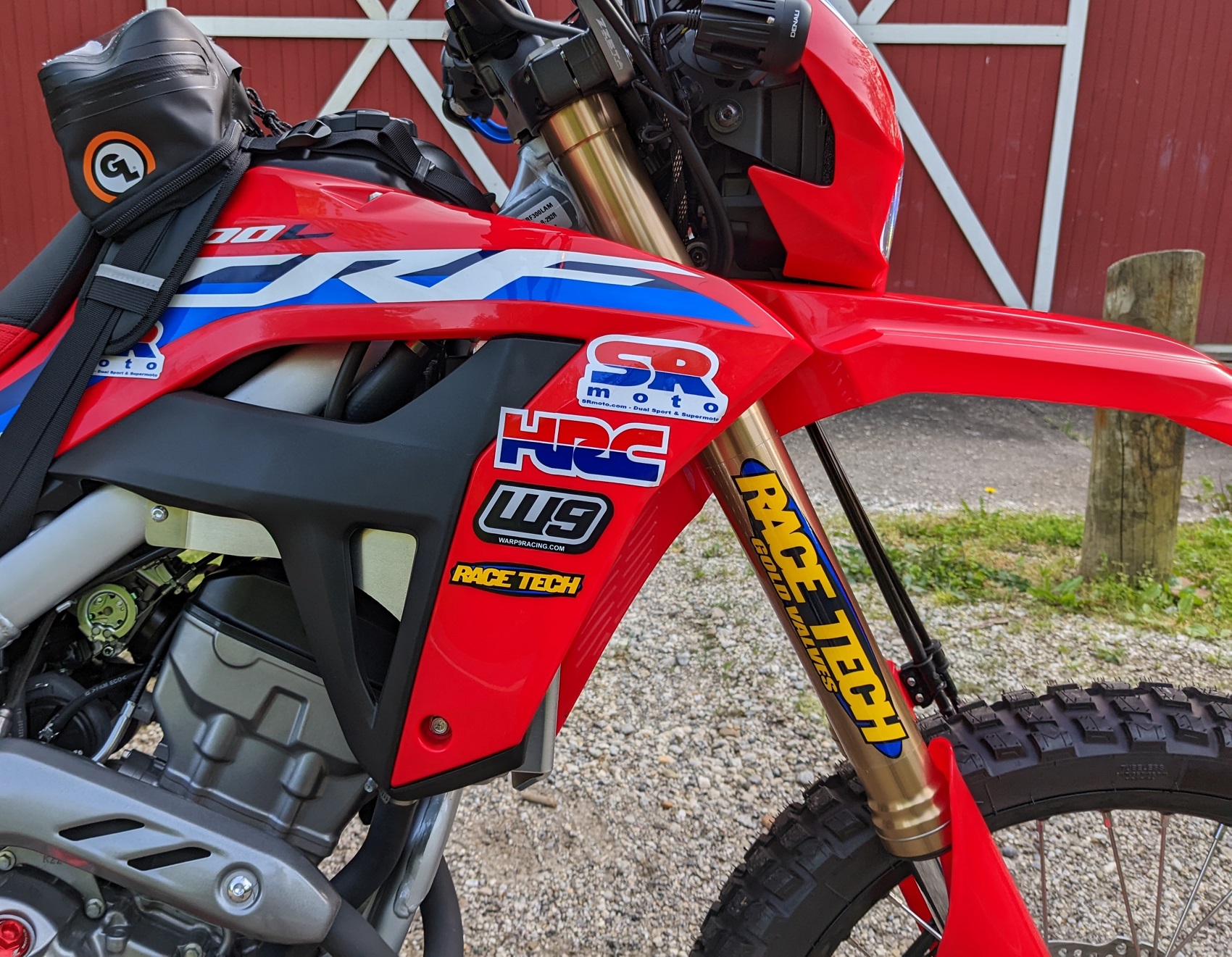

For my weight, and the type of riding I do, the stock CRF300L suspension was way too soft and lacks any way to adjust it, aside from rear pre-load. So, we did Race Tech’s Front Fork Spring Kit and Gold Valves for the front forks, and replaced the stock rear shock with Race Tech’s Internal Reservoir G3-S shock. What a difference this stuff makes. The bike now has proper dirt bike suspension, that is setup for my weight and riding, plus it has further adjustability if I see that as necessary in the future.
• Race Tech Suspension Package for CRF300L from SRmoto

DRIVETRAIN…
The stock chain works just fine, but at our bikes first service, when we were replacing our tires with the new Michelins, we decided to swap out the chain for a D.I.D 520 ERVT that we also use on our CRF450RL project bike. And at that same time, we swapped the stock chain guide for Zeta’s black/red anodized model.
• D.I.D 520 ERVT Racing Chain (Gold, cut to 106 links) from SRmoto
• Stock 14/40 gearing so far, that may change
• Zeta Racing Chain Guide from SRmoto

TIRES & WHEELS…
We weren’t a big fan of the stock IRC’s, so those had to go at the first service. We’ve used the Michelin Anakee Wild on our WR250R project bike, and really liked them. It’s one of the better 50/50 tire options out there.
• Michelin Anakee Wild Front Tire (90/90-21) from Revzilla
• Michelin Anakee Wild Rear Tire (120/80-18) from Revzilla
• Michelin Inner Tubes from Revzilla
• Stock CRF300L Wheels

MISCELLANEOUS…
• Zeta Oil Filter Cover (Red) from SRmoto
• Zeta Magnetic Drain Bolt (Red) from SRmoto
• Zeta Engine Plug Set (Red) from SRmoto
• Zeta Oil Filler Plug (Red) from SRmoto
• Zeta Racing Chain Guide (Red)
• Zeta Oil Filler Plug (Red) from SRmoto
• Fender/Fork Protector Decal Kits from SRmoto
<!– • Zeta Drive/Sprocket Cover (Red) –>

BRAKES…
The stock brakes are definitely one of the bikes weak points. We replaced the stock front brake pad with more aggressive Galfer Sintered pads and that did improve front braking. We will be installing their pads in the rear as well, and once Galfer has front/rear braided stainless steel brake lines, we’ll be adding those. We did that same setup on our CRF250L project bike and the brakes were much improved over stock.
• Galfer Front Brake Pads from SRmoto

TOOLS…
• DRC Lift Stand from SRmoto
• Longacre Digital Tire Gauge
• Cruz Tools Outback’R M14 Tool Set

FUTURE MODS…
• Brakes: Galfer Braided Stainless Steel Brake lines will help improve brake lever/pedal feel
• Steering Stabilizer: We’re hoping Scotts will have a steering stabilizer kit for it soon
• Luggage: Probably adding Giant Loop Saddlebags and also Rotopax to carry more fuel
• More as we ride the bike and get a feel for what it needs…

Zeta LED flashers In The Handguards / Denali DM LED Lights

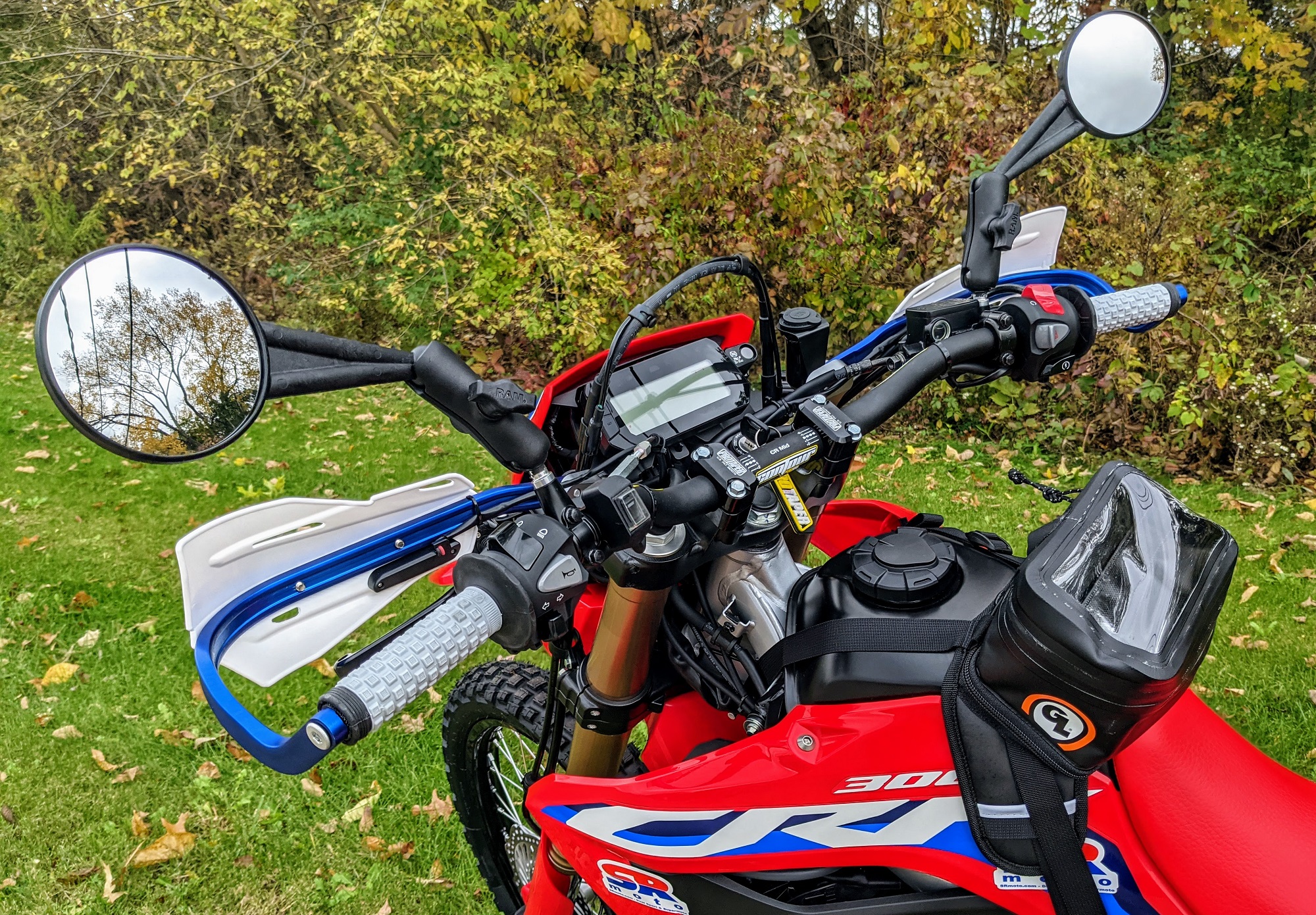

Zeta Armor Handguards with Zeta Triple Clamp Mounts

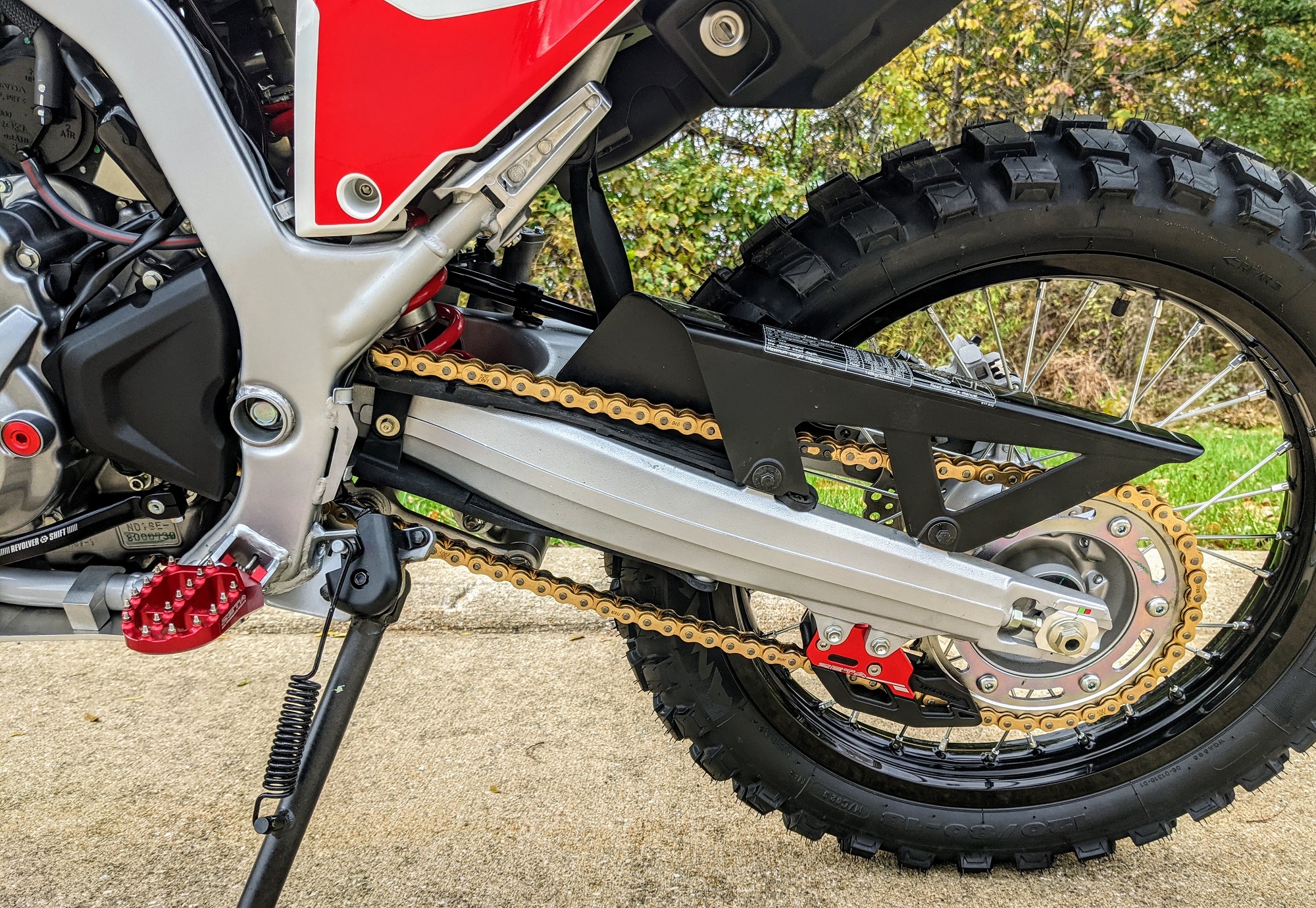

D.I.D 520 ERVT Chain and Zeta Racing Chain Guide

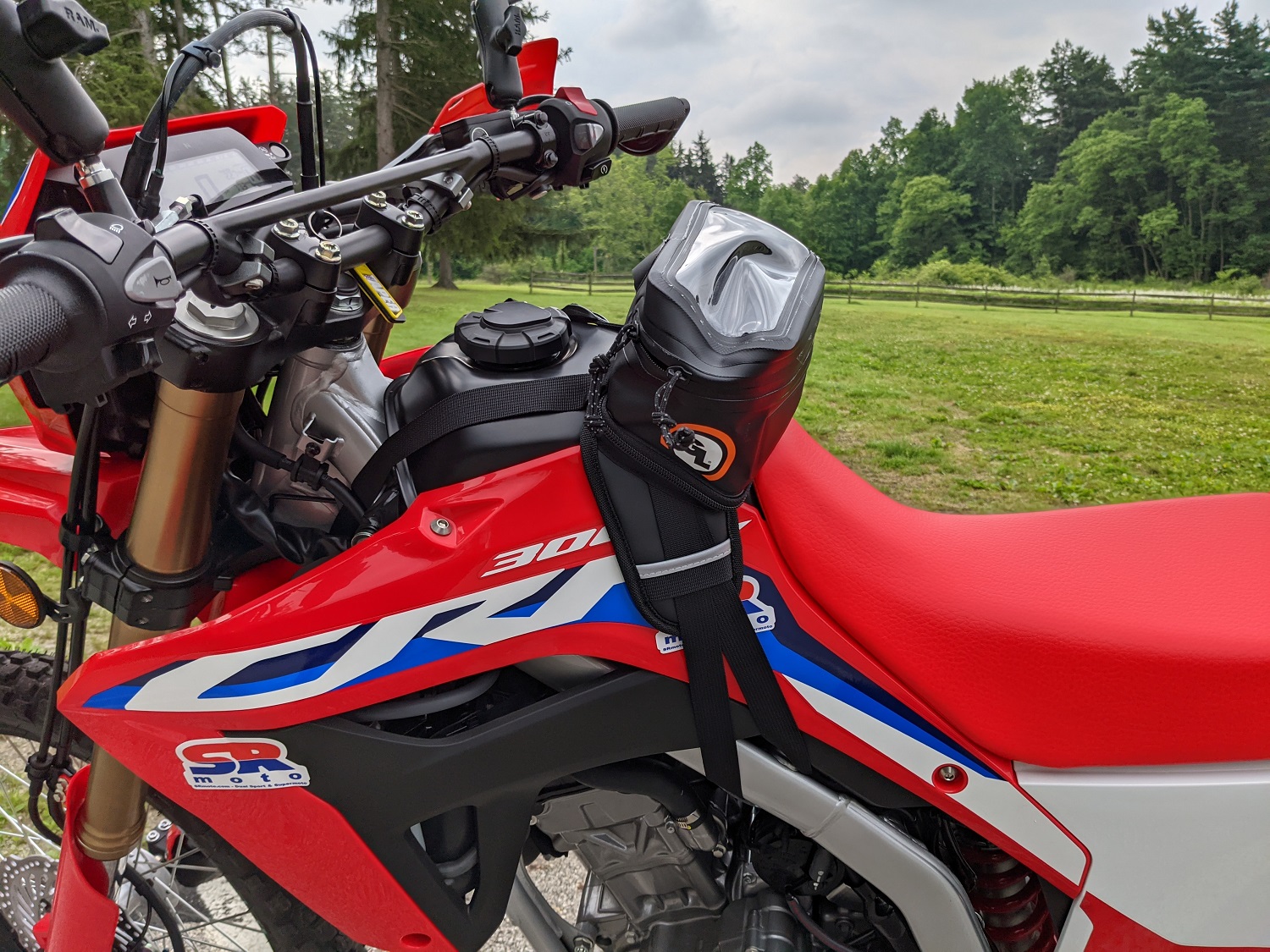

Giant Loop Buck N’ Roll Tank Bag
