Home >> Product Photos >> CRF300L Handguards with Aftermarket Handlebars
Looking for handguards for your Honda CRF300L or CRF300 Rally? Here are some photos of the various Zeta handguards we’ve installed on our CRF300L Project Bike with aftermarket handlebars…
NOTE: If you want to see handguards mounted on the CRF300L with the STOCK handlebars, click here.

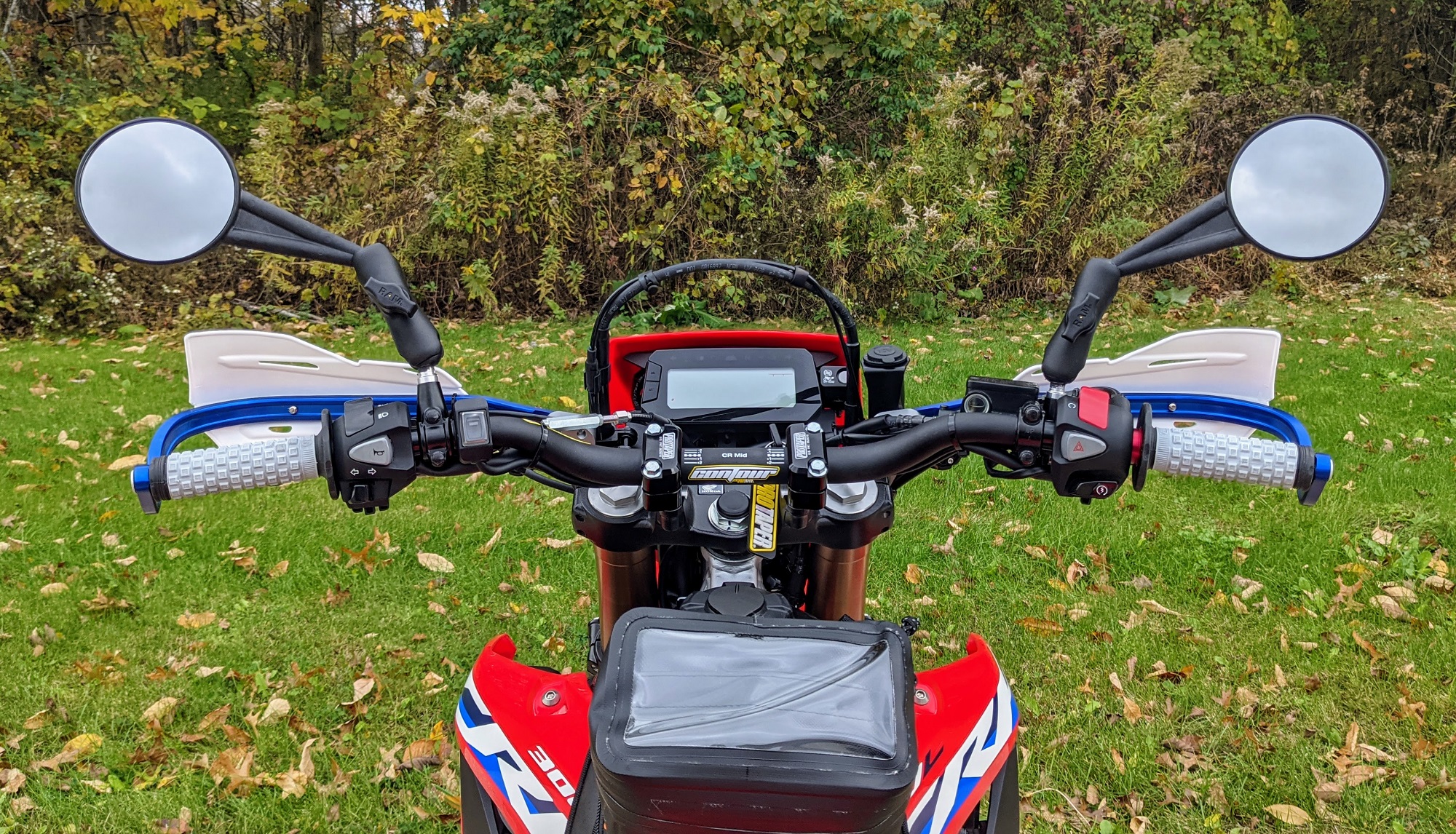

We recently replaced the stock handlebars on our CRF300L Project bike with oversize 1 1/8″ Pro Taper Contours. We re-used the Zeta Armor handguards we had originally installed on the stock handlebars, but instead of using their standard handlebar clamps, we used Zeta’s hand guard mounts that attach to the top triple clamp. We also added the optional Zeta LED turn signals and 12oClockLabs Running Light adapters so the new LED’s work both as turn signals and also running lights. One final thing we added was a 12oClockLabs Fixed Rate Flasher so that our front and rear LED’s flash slowly instead of hyper flashing.

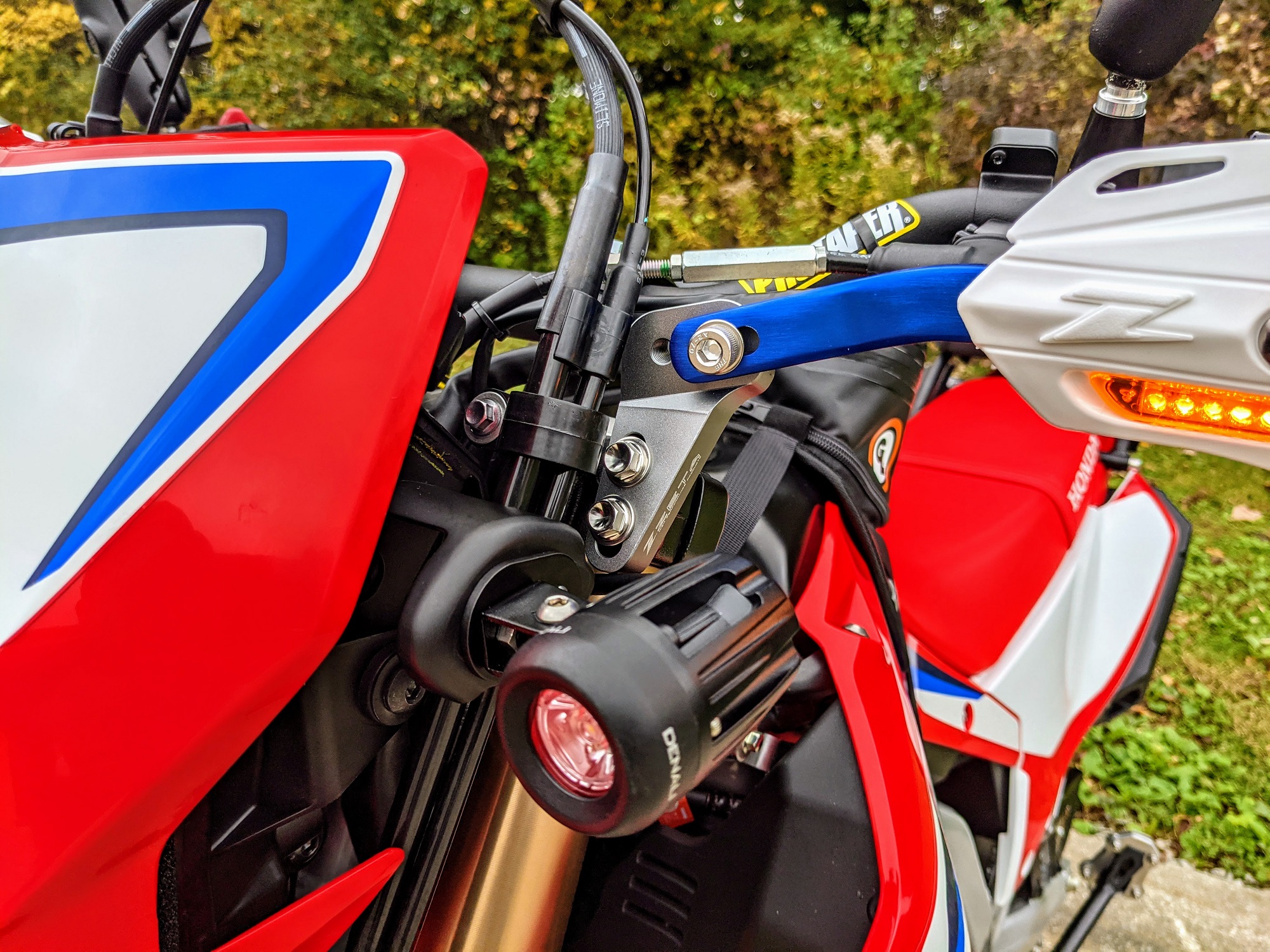

Zeta Handguard Triple Clamp Mount (Front Mount Type)

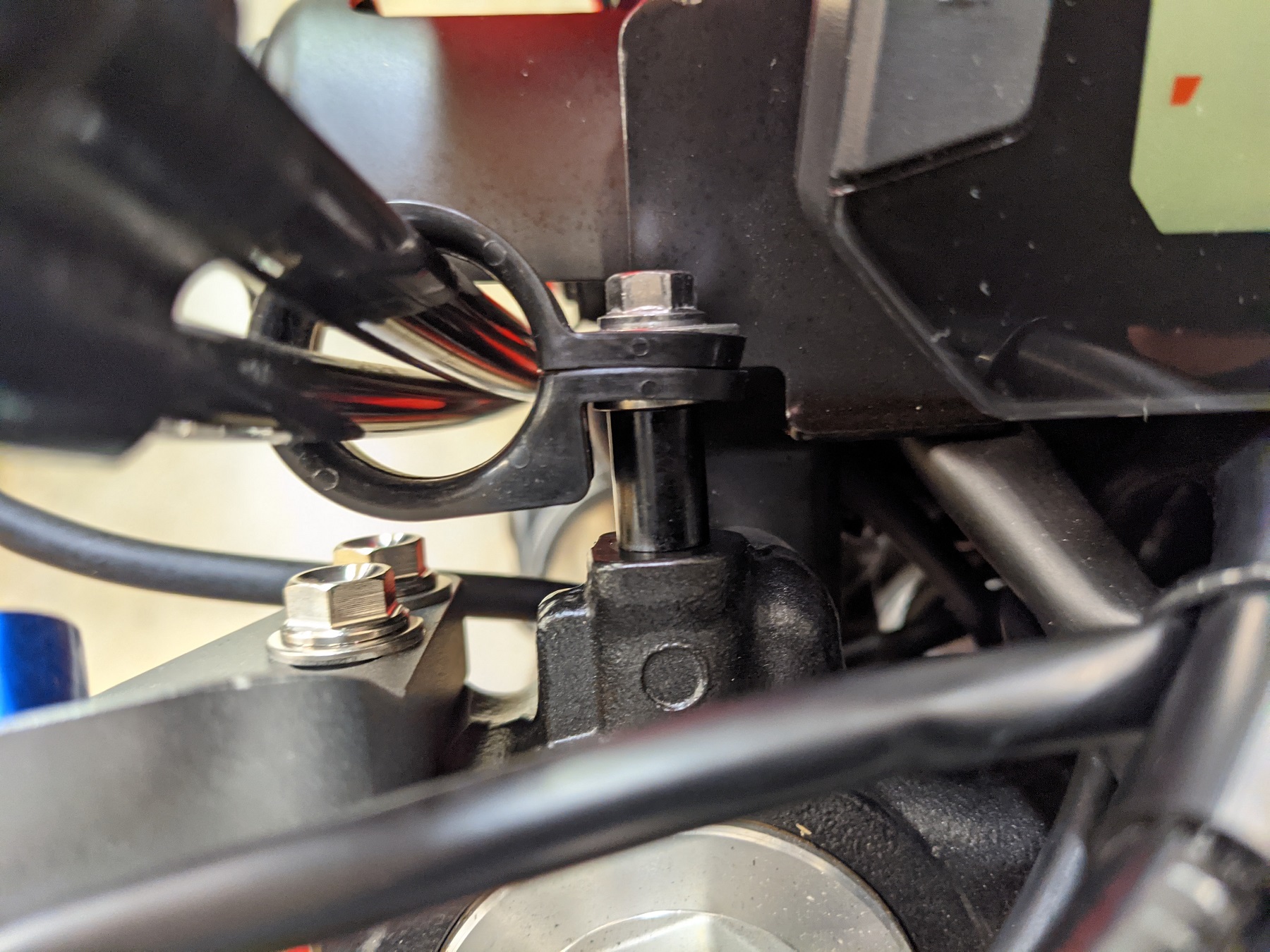

We used a spacer and longer bolt for the front brake line routing clamp so it would clear the triple clamp mounts
Zeta Armor Handguards, Clutch Side
Zeta Armor Handguards, Brake Side
Shown in the photos above…
• Zeta Armor Handguards with XC Protectors and LED’s at SRmoto
• Zeta Hand Guard Mount for Triple Clamps (Front Mount Type) at SRmoto
• 12oClockLabs Running Light Adapters at SRmoto
• 12oClockLabs Fixed Rate Flasher at SRmoto
If you want a slightly better handguard, you could also go with the Zeta PRO Armor handguards with that same Zeta Hand Guard Mount for Triple Clamps as your mount kit. The PRO’s are an upgraded version of the standard Armor handguard, and have stronger handlebar inserts, protective plastic bumpers on the outer edge of the handguard, and you get to choose what mount kit you want… for the CRF300L you could use the standard handlebar clamps or U-Clamps if you want to attach the in-board part of your handguards to the handlebar itself, or you can do the “Front Mount Type” triple clamp mount like we are using above.
• Zeta PRO Armor Handguards at SRmoto
If you want to add bar end weights to help reduce vibration on your CRF300L, we were able to get the Barkbusters Teardrop Bar End Weights to work with our Zeta Armor Handguards.
• Barkbusters Handlebar Bar End Weights from Twisted Throttle
• Barkbusters Handlebar Bar End Weights from Revzilla
