Yamaha WR250R Supermoto Conversion #2

Home >> Project Bikes >> SRmoto.com Yamaha WR250R Supermoto Conversion #2

<!–

–>

One of the nice things about a dual sport bike like the WR250R is that it can be two bikes in one. With the stock knobbies, you have a very capable off-road bike that can also be ridden on the street to and from the trails. And by adding a set of 17″ supermoto wheels and tires, you can also have a very capable corner carver for more hardcore street riding.

Converting your WR250R to a supermoto is pretty straightforward. All you need is a set of 17″ supermoto wheels like the ones we use from Warp 9 Racing, and then some sticky supermoto street tires like the Bridgestones we use (see details below). There are a few other things you need to do to fit the smaller 17″ wheels/tires. Up front, in order to clear the smaller 17″ supermoto tire, you have to re-route the front brake line to the outside of the fork leg and also trim the plastic fork protectors. You also need to source a shorter kick stand…. we just ordered an OEM kickstand from a 2008-2011 WR250X Supermoto, which is about an inch shorter and will bolt right on. As for a rear sprocket, the gearing you choose is a personal preference type of thing, but on our bike we went with a 42T rear sprocket, which also happens to be what the WR250X Supermoto’s came stock with.

Our bike is currently equipped with the following mods and accessories, all of which will work on any 2008+ Yamaha WR250R or WR250X…

Supermoto Wheels/Tires:
• Warp 9 Elite Supermoto Wheels
– Black Rims, Blue Hubs, Blue Nipples, Silver Spokes
– Warp 9 Racing Rear Sprocket, Black, 42T
• Bridgestone S20 Evo Hypersport Front Tire (110/70-17)
• Bridgestone S20 Evo Hypersport Rear Tire (140/40-17)

Engine/Performance:
• FMF PowerCore4 Performance Package (PC4 muffler, Megabomb header, EFI Controller, EXUP Emulator)
• No Toil Super Flo Filter Kit

Lighting/Electrical:
• DRC Edge2 Integrated Tail Light Kit (red lense)
• Zeta Armor Hand Guards (blue) with XC Protectors (black) and Integrated LED’s
• Acerbis LED Vision Headlight (Black)
• Cyclops 7000 Lumen LED Headlight Bulb (fits stock headlight too)
• 12oClockLabs Turn Signal Running Light Adapters
• 12oClockLabs Fixed Rate Turn Signal Flasher
• 12oClockLabs SpeedoDRD Speedometer Calibrator
• 12oClockLabs Gear Position Indicator

Protection:
• Flatland Racing Radiator Guard
• Zeta Armor Hand Guards (blue) with XC Protectors (black) and Integrated LED’s
• Zeta Heel Guard/Chain Cover
• Zeta Aluminum Frame Guards
• Sandman Freedom Case Saver Kit

Cockpit:
• Seat Concepts Complete Seat (Low Foam Height, Blue/Black Gripper Cover)
• Zeta Aluminum Footpegs (Blue)
• Pro Moto Billet Rear Cargo Rack
• Short Clutch and Brake Lever Set
• Pro Taper Pillow Top Grips
• Zeta Aluminum Throttle Tube, Standard
• 12oClockLabs Gear Position Indicator
• Pro Taper Contour Handlebars, 1 1/8″, Woods High Bend
• Zeta RX2 Handlebar Clamp Kit
• CRG Blindsight Bar End Clamp On Mirror

Lowering:
• Yamalink Lowering Link (Blue)
• Seat Concepts Complete Seat (Low Foam Height, Blue/Black Gripper Cover)

Body:
• IMS 3.1 Gallon Gas Tank (Black)
• Yamaha OEM Plastic Kit (Black)
• Retro Yamaha Tank Graphics
• Yamalink Lowering Link (Blue)
• Zeta Oil Filter Cover (Blue)
• Zeta Billet Kit (Blue)
• Acerbis Supermoto Front Fender (Black)
• DRC Radiator Hose Kit (Red)
• Yamaha OEM WR250X Kickstand (2008-2011 model year)

Supermoto Drivetrain:
• EK 520 MVXZ X-Ring Dual Sport Chain, Gold
• Warp 9 Rear Sprocket, Black, 42T (stock size is 43T)
• Sunstar Front Sprocket, 13T (stock size)

Luggage/Bags/Tools:
• Wolfman Enduro Tank Bag
• Wolfman Peak Tail Bag
• Cruz Tools Outback’R M14 Tool Set

You can find all the parts/accessories we used on our WR250R Supermoto Converstion here…
Shop for Yamaha WR250R/X Parts

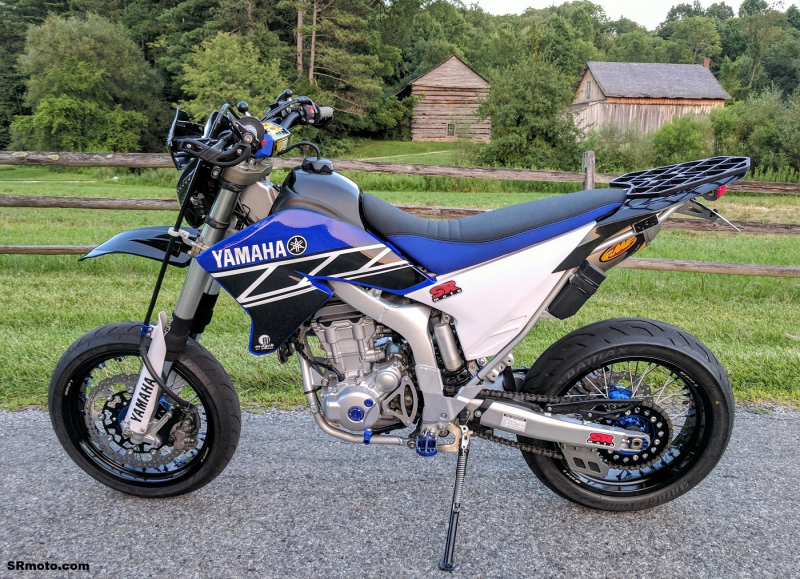

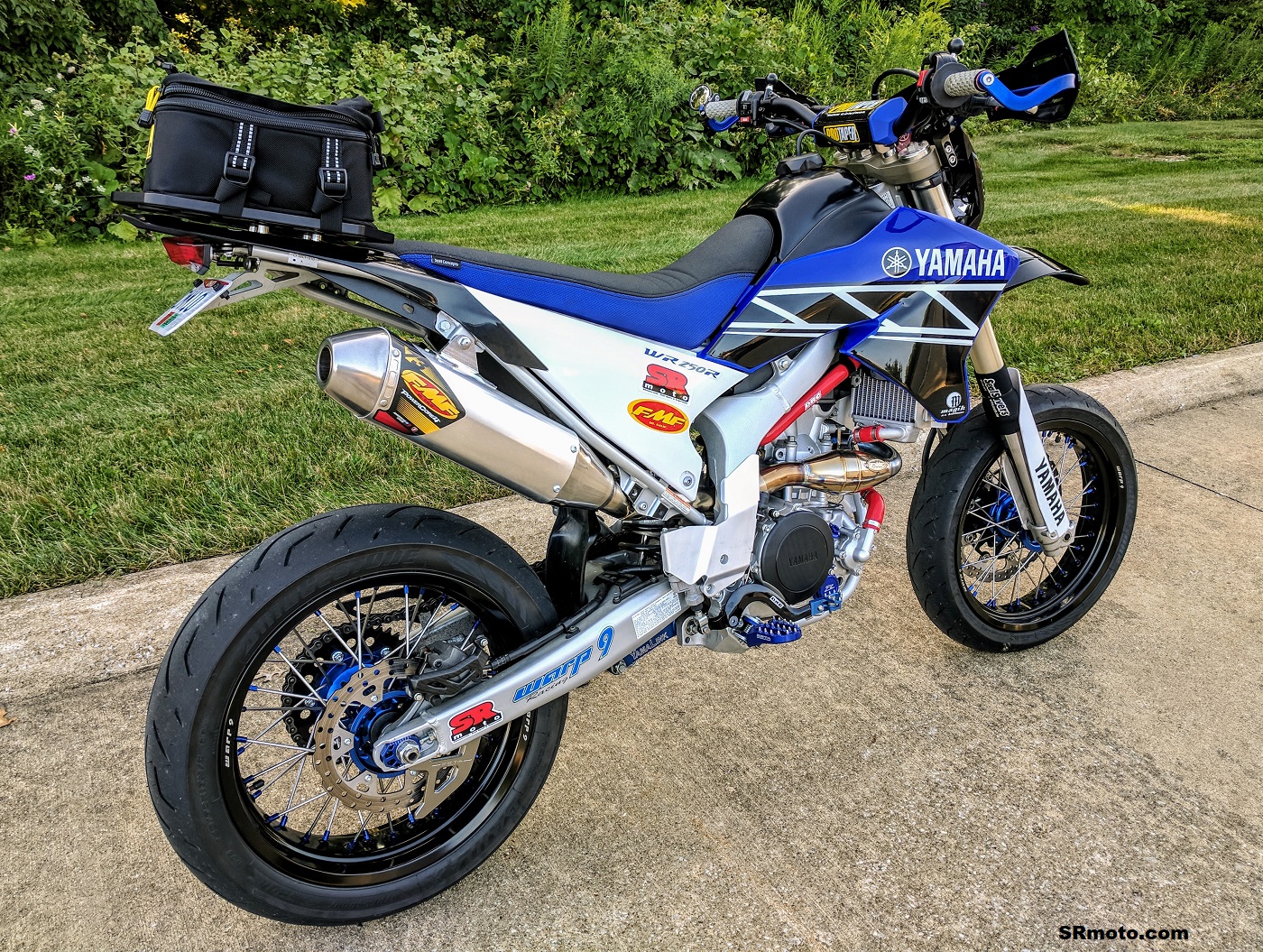

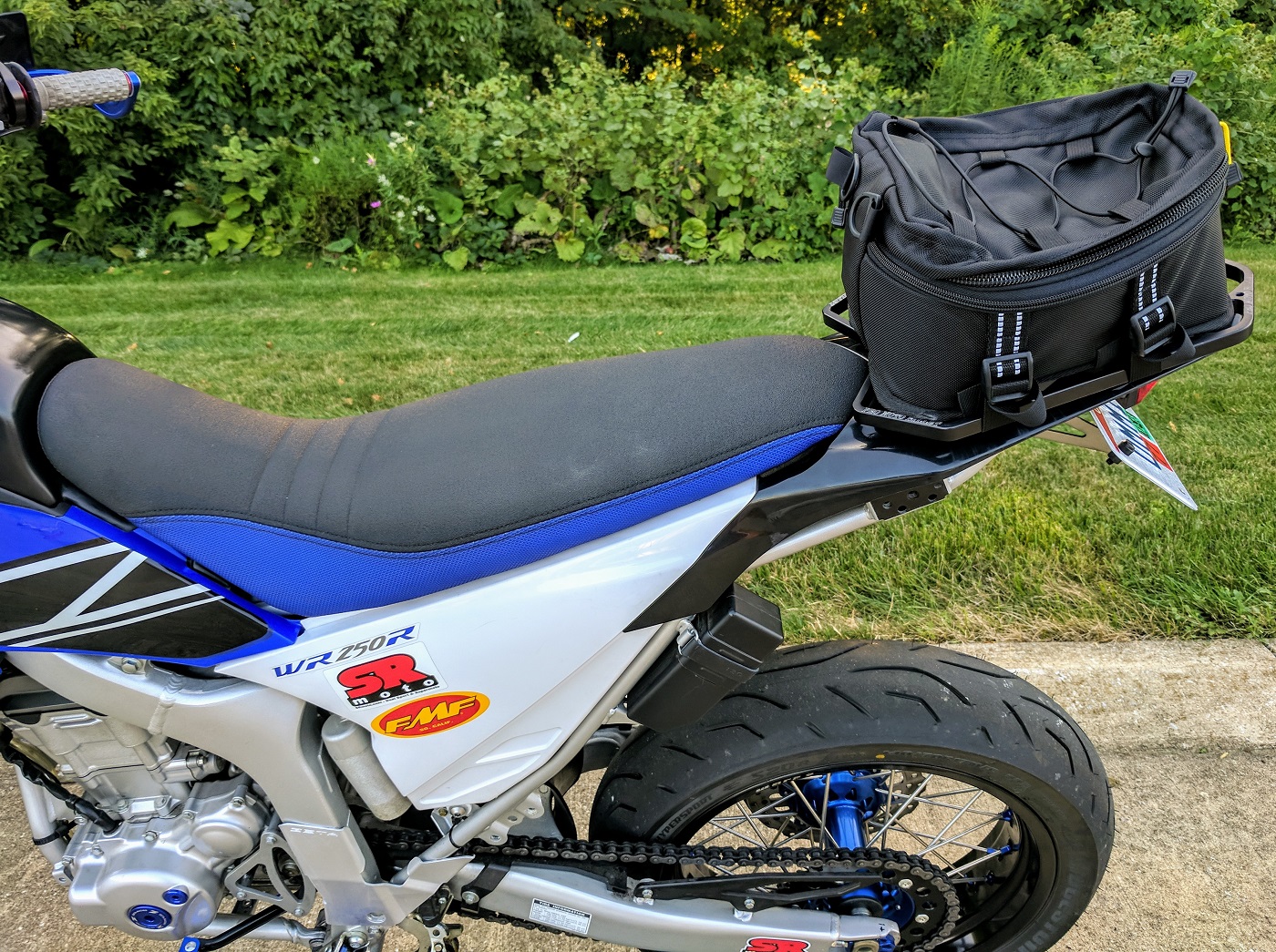

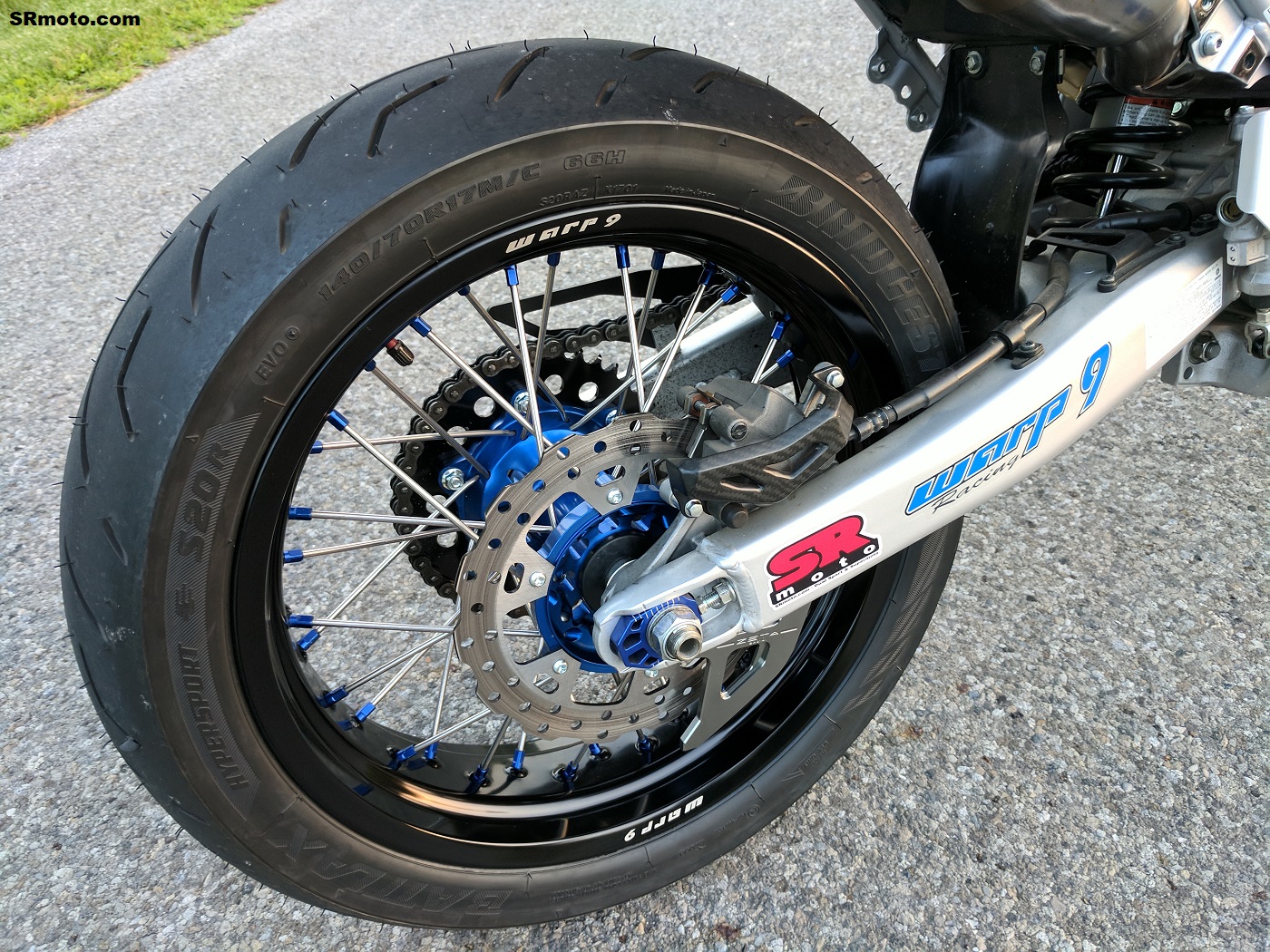

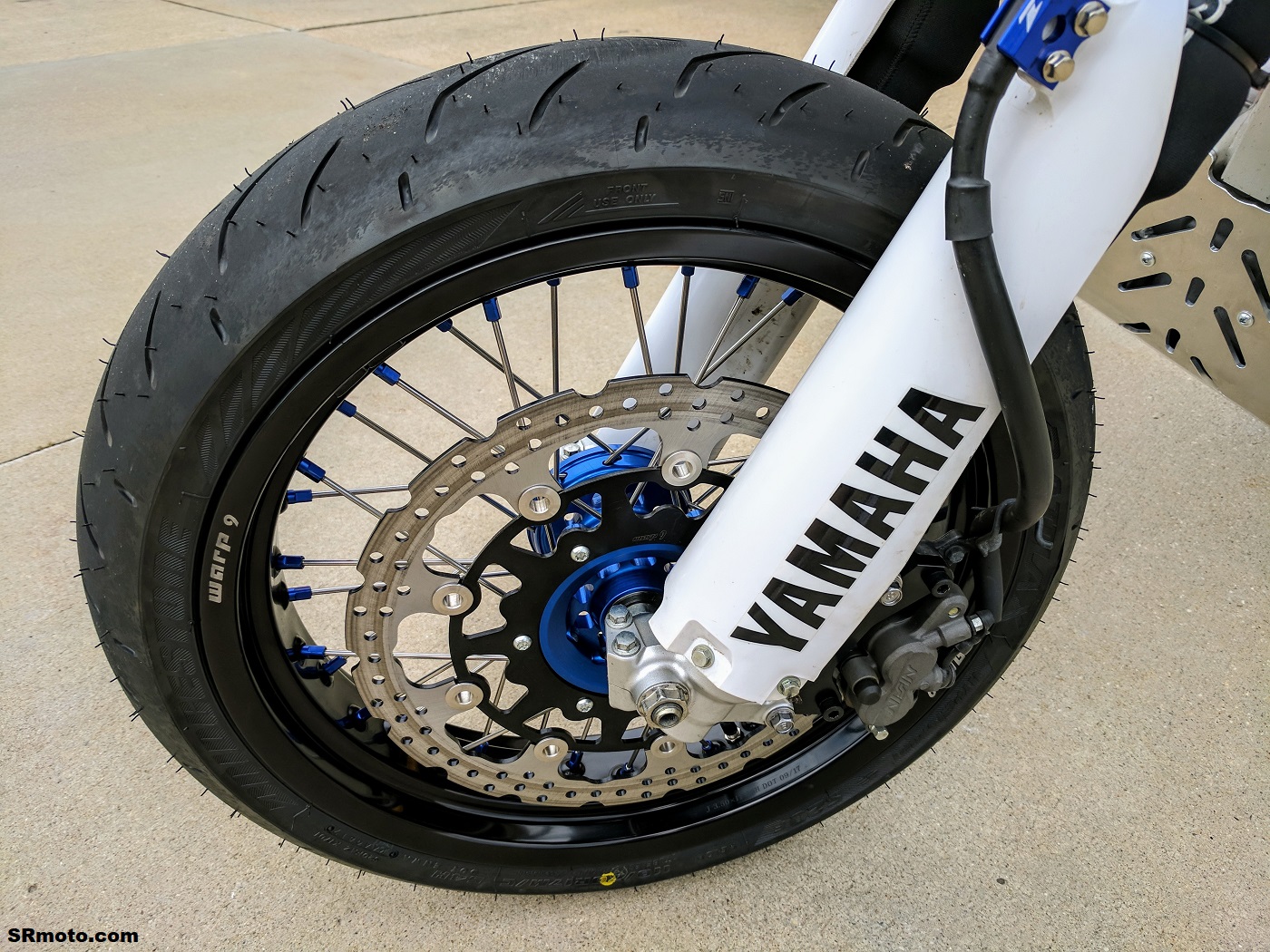

MORE PHOTOS:
